bendy quad

See the Bendy Quads video

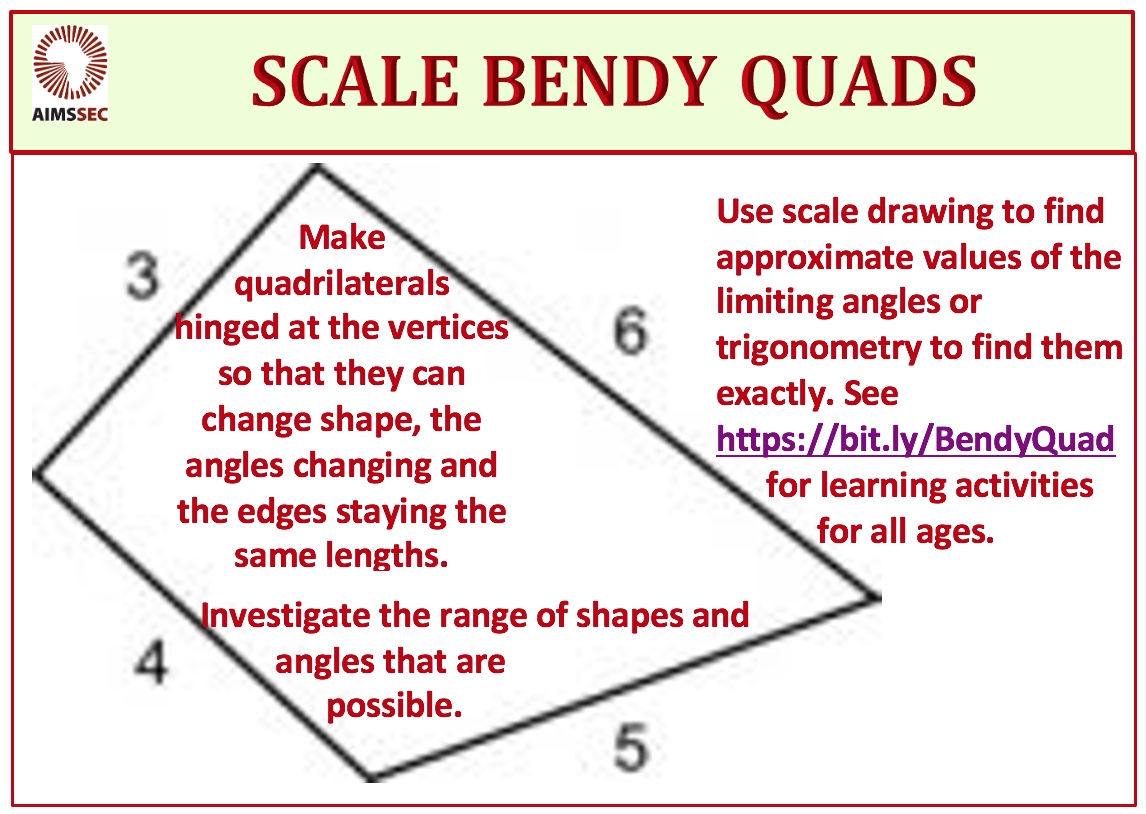

Four rods are hinged at their ends to form a convex quadrilateral with edges of length 3, 4, 5 and 6 (in that order). Investigate the different shapes that the quadrilateral can take if the polygon is always convex.

How do the angles change as the bendy quad changes shape?

Can any of the angles reduce to zero degrees?

Can any of the angles increase to 180 degrees?

Bendy Quad3Calculate the size of angles B,  C and D when the rods form a triangle as shown.

If the polygon remains convex, can angle C get any larger than shown in this diagram ? Can angle B get any smaller? Can angle D get any smaller? Why?

So what values can the angles take?

Can the quadrilateral be cyclic? If so what are its angles?

Click here to download the BENDY QUADS worksheet.

Click here to download the BENDY QUADS Inclusion and Home Learning Guide

Click here for Notes for Teachers.

This problem is adapted from the NRICH task with the same name with permission of the University of Cambridge. All rights reserved.
