This diagram shows a proof.
Look carefully. Can you see three squares?
Assuming that they are squares, can you prove that four of the triangles are congruent?
Can you now write down a proof of Pythagoras’ Theorem and explain the proof?

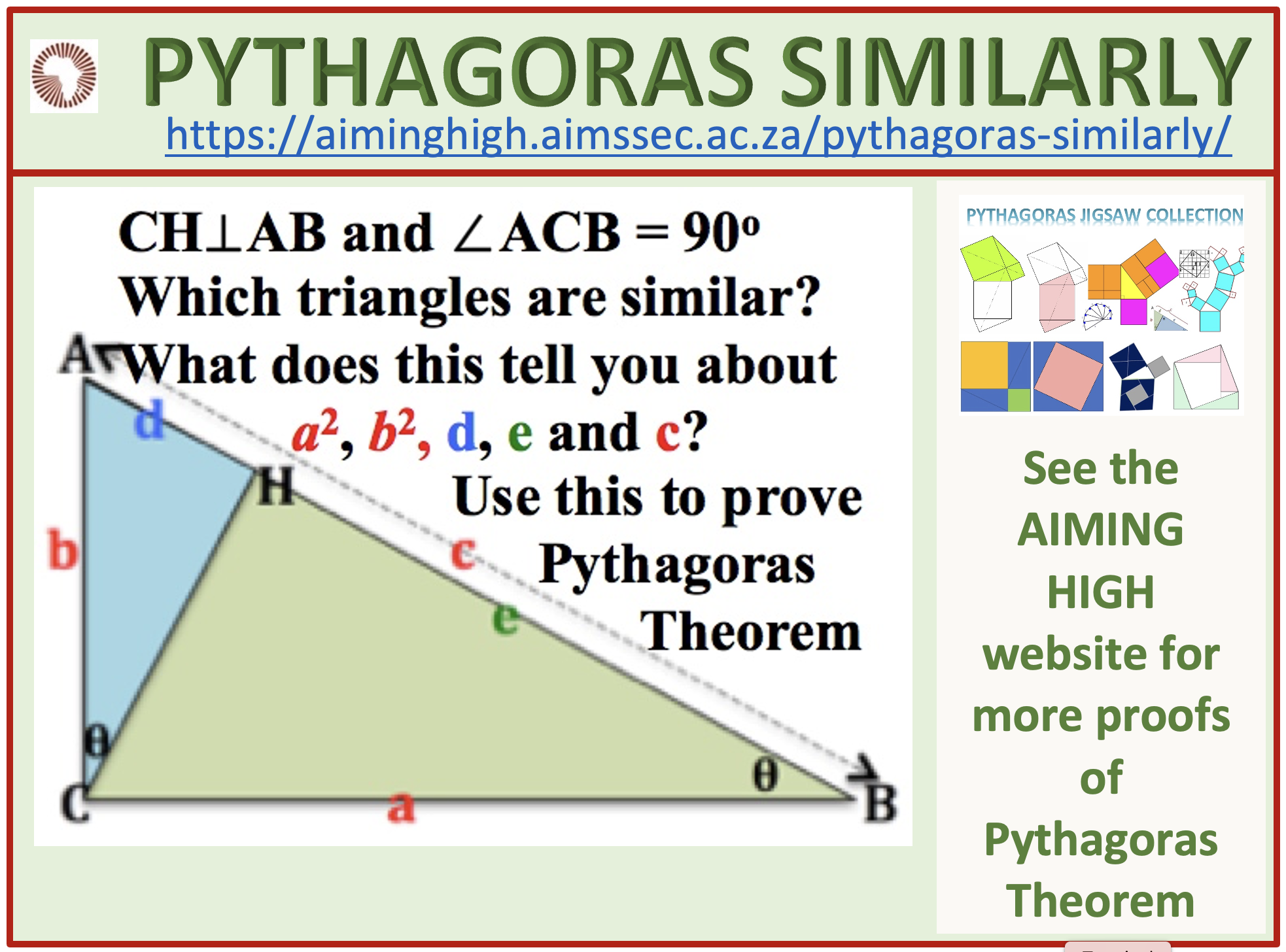

The second diagram shows a well known proof using similar triangles.
Explain why the two angles labelled \theta must be equal.
Explain why b^2 = dc \quad (1).
Explain why a^2 = ec \quad (2).
Combine equations (1) and (2) to give a proof of Pythagoras Theorem.
The AIMSSEC Inclusion and Home Learning Guide has the theme JIGSAW Proofs. It provides jigsaw tasks suitable for all ages from 5 to 18+. The youngest learners can enjoy doing the jigsaws and learn from talking about the shapes and their properties. Older learners be asked to give explanations and proofs.
